Flexible parts unscrambler manufacturer China for Foods and Semiconductors with High Efficiency

Name: Flexible parts unscrambler manufacturer China for Foods and Semiconductors with High Efficiency
Brand: Qiaoshou
Price: 1 USD

Wholesale Flexible parts unscrambler manufacturer China for Foods and Semiconductors with High Efficiency from china suppliers

Bag dimension : Length≤160mm,Width≤100mm

Weight of whole machine : 650Kg

Application area : Foods,nutritional supplements, medicines,NR,semi-conducts,daily goods

Brand Name : Qiaoshou

For : sorting,counting, boxing, bagging, material arrangement and other processes

After-sales service : customers' operators trained in our company,engineers available to service machinery overseas, and video technical support

Total power : 8.2KW

Maximum bag handling speed : 300PP/Min

Payment Terms : L/C,T/T

Warranty : 1 Year,12 month

Packaging Details : Wooden pallet

Export area : Russia,Malaysia,France,Jordan and so on

OEM &ODM : Supported

Place of Origin : Canton

Power type : AC220V 50/60HZ or custom

Contact Now

Flexible parts unscrambler

I.Product Description and Features

Irregularly piled materials are poured into the storage silo, the silo conveying through photoelectric sensing, the system control action, the material will be transported to the lifting unit, the lateral material separation unit. The transverse dividing unit conveys the material to the material handling rollers for material handling as required by the system.
The material management roller is composed of 11 sets of power, servo drive, photoelectric sensing, motion controller control, will be piled up materials: sorting, rejection, pull distance; more materials fall back to the storage silo recycling, sorting out the materials one by one order to send out the bagging machine to complete the material management work.
According to the requirements of the back-end process on the direction of the material, the material sent out can be equipped with visual inspection + turning machine to realize the function of direction unification.
The bagging machine can be matched with: cartoning machine, packaging machine, bagging machine, can filling machine, feeding machine, counting and finishing machine, etc., to form a production packaging line.

II.Main technical Parameter:

No.	Name/Dimension	Detailed parameter	Note
1	Maximum bag handling speed	300PP/Min	Associated with the sizes material
2	Bag dimension	Length≤160mm,Width≤100mm
3	Total power	8.2KW
4	Power type	AC220V 50/60HZ or custom
5	Outside dimension(LWH)	25009801600mm
6	Weight of whole machine	650Kg

Flexible parts unscrambler manufacturer China for Foods and Semiconductors with High Efficiency

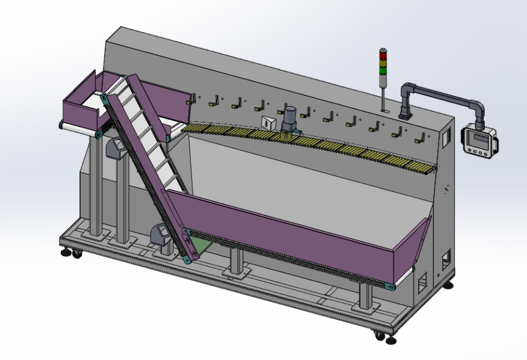

Qiaoshou Unorganized material handling machine diagram

III.Areas of application

Foods, Medicines, Healthcare, Semiconductors, New energy, Daily necessities.

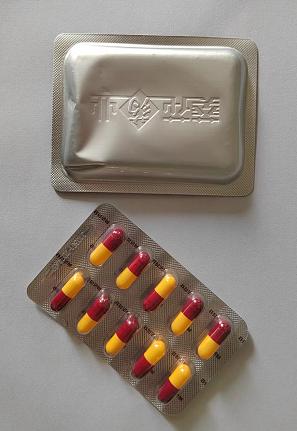

1. Medicine industry:

Flexible parts unscrambler manufacturer China for Foods and Semiconductors with High Efficiency

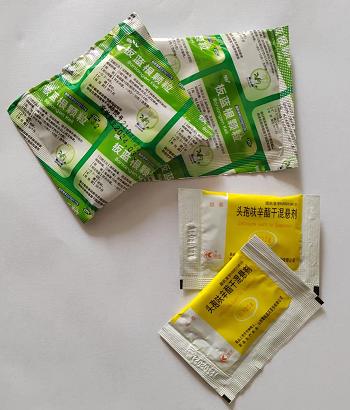

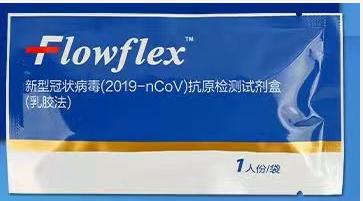

Pouch-packed instant granules/powders COVID-19 Antigen Rapid Test Platelike

2. Food industry:

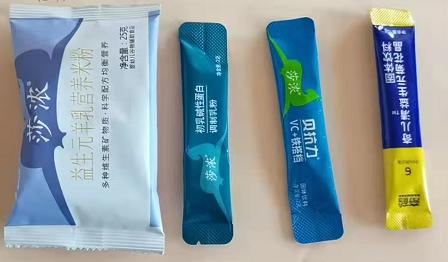

Meal replacement powder,nutrition powder,solid drinks and so on strip-shaped and square-shapeed bag products

Pre-packaged seasoning products

VI.Our other more cost-effective service options

You can opt for overall packaging automation solutions

VIII.Patent

V.Why choose us

1.More than 15 years' industry experience
2.Specilised team
3.Free solutions and on-site visits
4.Standard German standard industrial plants are more worry-free

5.After-sales service

Overseas Technical Support
Long-term Spare Parts Supply
12 Months Warranty
On-site Installation & Training (Optional)
Supports return policy

VI.FRQs

Q1:How fast do your flexible parts unscrambler machines run?
It runs 300PP/Min
Q2:How strong is your company?
A:We have our own patents and R&D team.And we provide customers with well-prepared pre-sales, in-site sale and after-sales service.Nisse bought our solution several years ago, but we still serve them fast.We have more than 70 employees.Our founder has been in this field for fifteen years.And our design director graduated from The Open University of China.And his major is machinery engineering.We have a CE certificete.Our famous customers are Nissin,Adolf,Daliyuan Food Group,Foshan Haitian Flavouring and Food Co.,Ltd.,etc..
Q3:Are your products complete?
Certainly!We can even provide automatic total packaging solutions.
Q4:How much is it each flexible parts unscrambler
It's a one-on-one quotation, so we make a solution including a quotation after you tell us all your detailed requirements.
