High-speed delta parellel robot DS-D-B-450
Food gradeHigh precisionDustproof
Compact structure High RegidityHigh load capacity
I.Product Overview
QS-D-B-450 Delta Robot - High Speed, High Precision, Fast Dynamic Response, High Stiffness
Classic high-speed delta robot configuration featuring translational movement along the XYZ axes in three-dimensional space. This robot is ideal for high-speed production operations in industries such as food and medicines, primarily used for rapid handling and sorting of light, small, scattered materials.
Top view Robotic arm details
Control cabinet
Mounting base
Up to 180 cycles/min | ±0.1mm Repeat Accuracy | 24h Continuous Operation
II<Product Parameters>
Performance parameter
| Model | OS-D-B-450 |
| Number of axis | 3/4 |
| Rated load | 2KG |
| Max speed | 180PP/min |
| Positional repeatability | ±0.1mm |
Physical& environmental parameter
| Working stroke range | L | 674 |
| M | 94 |
| N | 76 |
| A | 480 |
| B | 430 |
| C | 170 |
| D | 110 |
| Driving motor type | servo motor with absolute value encoder |
| Different load(KG) | 0.5 | 1 | 1.5 | 2 |
| Cycle time(25/300/25) | 0.35 | 0.4 | 0.52 | 0.6 |
| Total power/Voltage | 1.2KW(3 axes),1.25KW(4axes)/220V single phase |
| Working weight of Whole machine | 25KG |
| IP grade | IP54 |
| Working environment temperature | -10℃≤t≤50℃ |
| Installation method | underslung suspension |
III.Core strengths and tech highlights
- High-speed movement: High cycle efficiency, fits assembly line pace
- Precision positioning: Accurately grabs tiny items, suitable for food/pharmaceutical/electronics industries
- Lightweight design: Compact body, easy to install, takes up little space
- Food-grade setup: Stainless steel material, easy to clean, meets hygiene standards
- Stable and durable: Original motors/gears, can run continuously for long periods without failure
- Easy setup: Comes with a control system, quick to learn, low maintenance cost
- Payback period:Half a year
- On-site debugging:The standard setup can reach full production in as fast as 3 days, and complex production lines can complete integration within 2 weeks.
- Alternative headcount:3-6 workers
IV.Close-up of details & Structure Parsing
Close-up of core parts
Robot arm joints Servo motors
Mounting positions Control cabinet panel
Control cabinet panel
Structual representation
Line drawing/3D sketch showing the principles of motion Load-bearing structure
V.Running presentation video
Real Working Performance | On-site Operation Display
VI.Applied acenery &applied indutry
1.Applied indutry
Food processing Pharmaceutical packaging
Daily chemical product 3C Electronics
Nutrition Dietry Supplement
Logistics sorting Toys
Cosmetics Hardware
Tea beverage
2. Production line real scene (machines + conveyor belt + complete material setup)
Food processing
The function of a Delta Robot in the industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the food packaging process.
Pharmaceutical packaging
The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the Pharmaceutical packaging process.

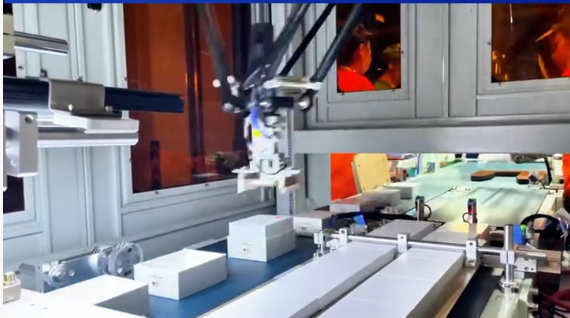

Daily chemical product
The role of spider robots in this industry:Smart picking and handling, automatic bottle sorting, automatic packing
3C Electronics
The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the 3C Electronics packaging process.
Suitable for working conditions: automatic palletizing and depalletizing, high-speed picking and sorting, downstream packaging automation, precision assembly
Logistic sorting
The role of spider robots in this industry:Visual recognition and positioning, automatic picking, placing, and delivery
Suitable working conditions: high-speed sorting needs, high-precision sorting needs, space-limited environments, 24-hour intensive operations, sorting of multiple types of goods, multi-arm collaboration and customization requirements
4.View Complete Industry Solutions
1)Overall Plan Positioning
Robot Type: Parallel/Delta Robots (mainly 2–4 DOF)
Core Advantages: high speed, high repeatability, low inertia, small footprint
Applicable Processes: Pick & Place, sorting, packing, assembly
2) Typical Industry Applications
Food Industry: sorting and packing candies, biscuits, frozen foods
Pharmaceutical Industry: medicine sorting, blister packaging, reagent dispensing
3C Electronics: part assembly, loading/unloading for inspection
Logistics & E-commerce: express package sorting
Daily Chemicals/Hardware: small item packing, tray arrangement
3) Core Components of the Complete Solution
A. Robot Body
Load: 0.5kg–5kg
Working Radius: 350–1600mm
Cycle: 60–180 times/min
Protection Level: IP65 (food-grade stainless steel optional)
B. Vision System (Machine Vision)
2D/3D Cameras
Object recognition, positioning, defect detection
Real-time communication with robot
C. Conveyor and Feeding System
Belt lines, vibratory bowls, turntables
Dynamic tracking conveyors (encoder synchronized)
D. End Effectors
Vacuum suction cups
Pneumatic grippers
Flexible grippers
E. Control System
Motion controller
Robot-specific control system
MES integration for production line
F. Safety System
Light curtains, safety doors
Emergency stop, area protection
G. Software and Integration Capabilities
Teach programming / graphical programming
Production line data traceability
Remote operation and maintenance, fault diagnosis
Integration with WMS/ERP
H. Project Implementation Process (Delivery Loop)
Requirement analysis and cycle calculation
Solution design and simulation
Equipment manufacturing and integration
On-site installation and commissioning
Acceptance and training
After-sales support and optimization
I. Value Delivered by the Solution
Labor replacement: 30%–70%
Cycle time improvement: 2–5x
Yield improvement, hygiene compliance
Flexible production, quick line change
VII.Supporting components and full set of solutions
- Parallel robots are rarely used alone; they are shown with supporting products to demonstrate one-stop service:
- - Standard: Dedicated control cabinet, control system, data cables, installation brackets
- - Optional: Vision positioning system, conveyor belt, loading and unloading mechanisms, safety fences
- - Layout: Listed with images and text, labeled 'Standard'/'Optional', with brief matching suggestions
- -Full set of solutions:Bagging machine, material feeding line, case opener, automatic packing machine, weighing mechanism, rejection mechanism, flap folding and sealing machine, automatic strapping machine, palletizer.
VIII.True sample case & Implemented project
Japan Food Factory|Packaging Automation overall Solution
Jordan Chemical Industry | Packaging Automation overall Solution
More Success Cases https://www.ecweb.com/website/file/case
IX. Patent,Certificate & after-sales service
An automatic carton erector A sorting robot A flexile gripper
An automatic forklift An automatic package A buffer feeding mechanism machine feeding device for a noodle fork sorting
machine
Drag-to-teach six-axis robot
CE
After-sales service
- Overseas Technical Support
- Long-term Spare Parts Supply
- 12 Months Warranty
- On-site Installation & Training (Optional)
X.FAQ
Q1: How fast do your Delta robot run?
Generally speaking, the speed is 80-180PP/min, while it can be customized as you require.
Q2: How strong is your company?
We have our own patents and R&D team. We provide customers with well-prepared pre-sales, in-site sale and after-sales service. Nisse bought our solution several years ago, but we still serve them fast. We have more than 70 employees. Our founder has been in this field for fifteen years. Our design director graduated from The Open University of China with a major in machinery engineering. We have a CE certificate. Our famous customers include Nissin, Adolf, etc.
Q3: Are your products complete?
Certainly! We can even provide packaging auto overall solutions.
Q4:What are the advantages of our products compared to other brands?
Complete packaging solution (spider-handle + unpacking + sealing + palletizing)
Q5.What is the maximum load capacity of the parallel robot?
5KG.
Q6:What is the robot's working range and accuracy?
1600, ±0.1mm.
